Application
Intelligent buildings which require super low height line planning & allocation
Characteristics
- Floor height adjustment range can be 35mm-150mm
- Wiring by opening cover board instead of the panel
- Interchange cover board and socket without cutting floors
- Outlet is located on each cover board, wires can easily come out

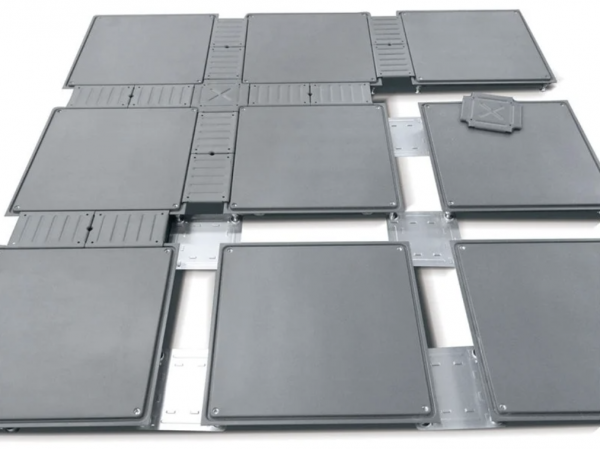

Understructure and trucking
Technical parameters
The raised floor will be with a safety factor of three times the concentrated (design) load, and is capable of meeting static and dynamic loads per CISCA Platform (Raised Access) Floors Performance Specification.
| Type | Size | Uniform Load | Concentrated Load | Rolling Load | Impact Load | Ultimate Load | ||
| 0.100”/2.5mm Deflection | 10 Times | 10K Times | ||||||
| FS450 | 500*500*25mm | 8.00KN/㎡ | 2.00KN | 204KG | 1.78KN | 1.56KN | 75LB/34KG | 6.89KN |
| FS662 | 500*500*25mm | 11.77KN/㎡ | 2.94KN | 300KG | 2.45KN | 2.00KN | 100LB/45KG | 8.85KN |
| FS800 | 500*500*25mm | 14.22KN/㎡ | 3.56KN | 363KG | 2.94KN | 2.45KN | 100LB/45KG | 11.25KN |
Why low profile raised floor?
Mordern offices need to adapt different layouts with different users and lessees, traditional facilities always become obsolete due to wiring and wiring distribution problems created by organisational changes and advances in technology, so building designers and facility managers need to face the challenges of constantly changing space needs while keeping life-cycle costs down.
Low profile raised floor systems can realize fast and easy installation, quick wire and cable changes, enhancing the ability to reconfigure the offices without disrupting power, voice and data services, as well as the air distribution systems. Besides, it can reach super low height that other raised floor can not reach.
